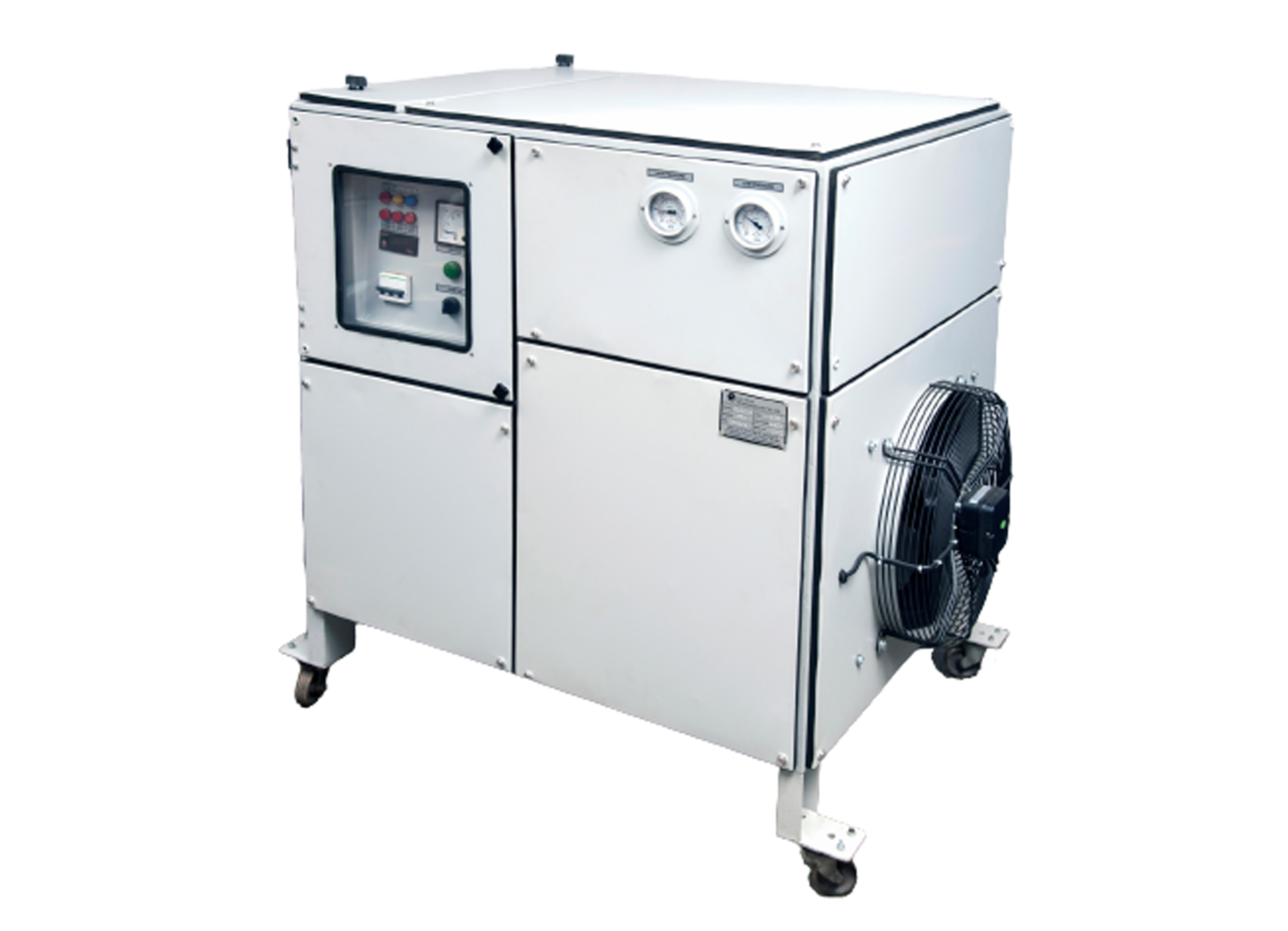

LEO-CHILL CO Series Co2 Chillers.

LEO-CHILL range of CO Series Chillers is the latest version of packaged chillers designed
        and tailored for Co2 storage tanks. Maintaining a temperature of (-) 25°C.

CO Series Chillers range is built with advance Dependable Controls, which give optimum
        performanceunder variable operating conditions. Chillers have been engineered to offer
        many features in a Compact;design.

CO Series range of Chillers features Non-Corrosive components in both the refrigeration
        and fluid handling circuits.

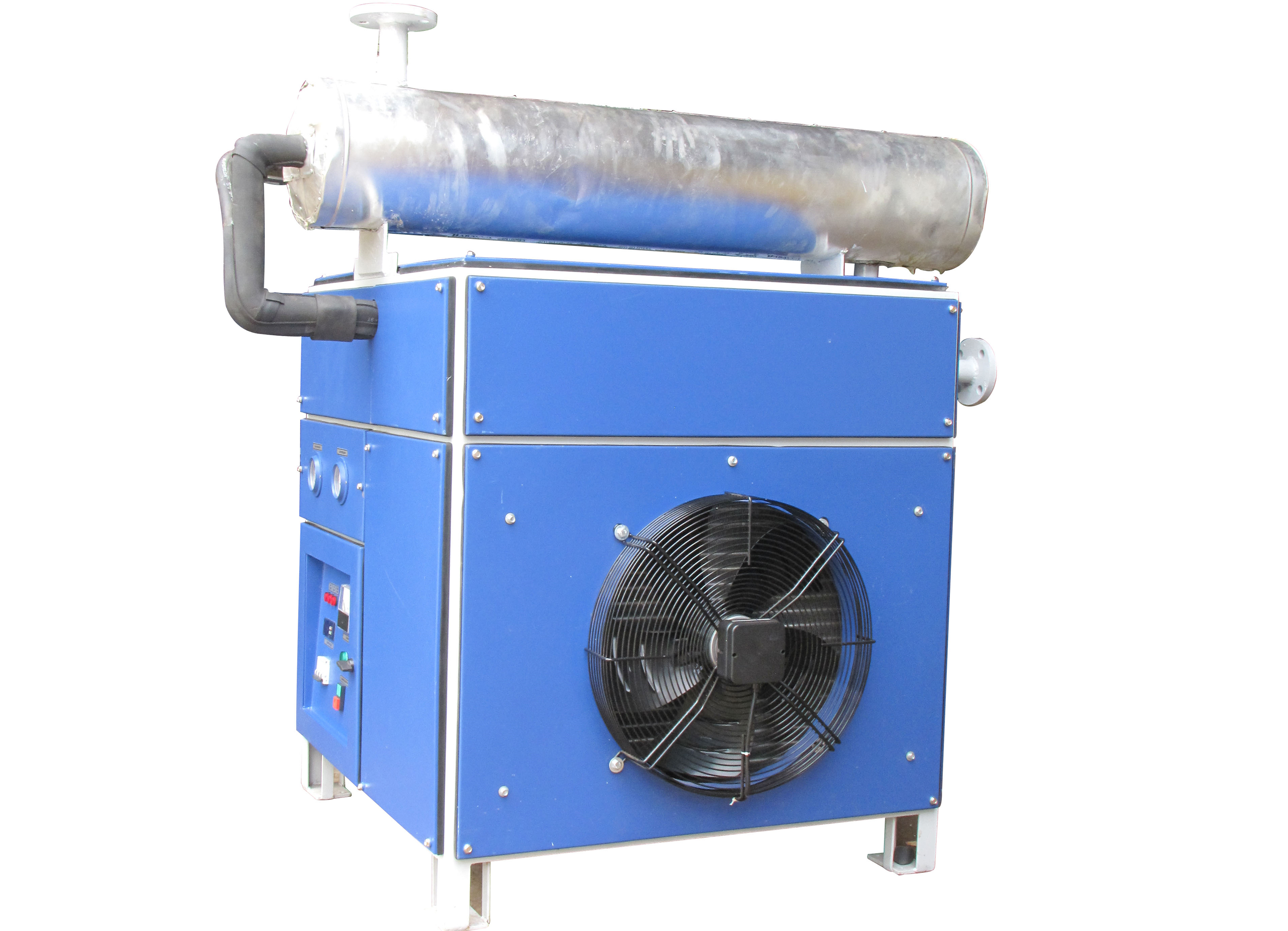

The Most important feature of these plants is the Co2 liquid Evaporator is mounted on the
        storage tank,instead of the conventional coil in tank.

Complete Electrical and refrigeration protection is standard in all CO series Chillers.

All Wiring and Refrigeration circuits are Colour Coded for quick and simple servicing.

Well-designed, easy to operate, In built Control Panel incorporating fuses, Switchgears,
        Terminal connectors with full function control. Micro processor temperature Controller,
        with protectionHP/LP switch (Alco),Expansion through High quality Danfoss Expansion
        valve, Pressure Switch (Indfoss).

LED display for fault detection, is a standard feature in the full range of chillers.

MODEL CO 15 KL CO 20 KL CO 30 KL CO 50 KL
Refrigeration Capacity 0.9TR 1.2TR 1.5TR 3.1 TR
Capacity in Kcal/Hr @ Evaporation -3000C 2780 Kcal/Hr 3580 Kcal/Hr 3580 Kcal/Hr 9415 Kcal/Hr
Cooling Medium for refrigerant Air Air Air Air
Gas Temperature at Outlet of chiller -250C -250C -250C -250C
Gas Temperature at Inlet of chiller - 170C - 170C - 170C - 170C
Pressure of Co2 22 Kg/cm2 22 Kg/cm2 22 Kg/cm2 22 Kg/cm2
Air Cooled Condenser 3000 Cfm 3000 Cfm 4000 Cfm 8800 Cfm
Refrigerant R 404 R 404 R 404 R 404
Condensing Temperature 540C 540C 540C 540C
Evaporation Temperature -300C -300C -300C -300C
Compresso Copeland/ Danfoss Copeland/ Danfoss Copeland/ Danfoss Copeland/ Danfoss
Total BHP Consumed at Compressor 4.8 BHP 5.34 BHP 6.88 BHP 11.6 BHP
Condenser Type Air Cooled Air Cooled Air Cooled Air Cooled
Chiller Type SS tube SS tube SS tube SS tube
Condenser Fan Motor 1 Nos 1 Nos 2 Nos 4 Nos
H.P 0.3HP 0.5HP 1 HP 2 HP
Total Electrical Power Requirement 5 HP 6 HP 8 HP 14 HP
