Established in the year 1996, we, “Leo-Chill Refrigeration Pvt. Ltd.” have emerged as one of the prominent manufacturers and exporters of a wide range of best quality Refrigeration and Chilled Water Systems.
Neerav Indl. Estate No. 3, Bldg. No. 4, Gala No.18, Village Sativali, Behind Gaon Devi Mandir,Vasai (E), Dist. Thane - 401 202

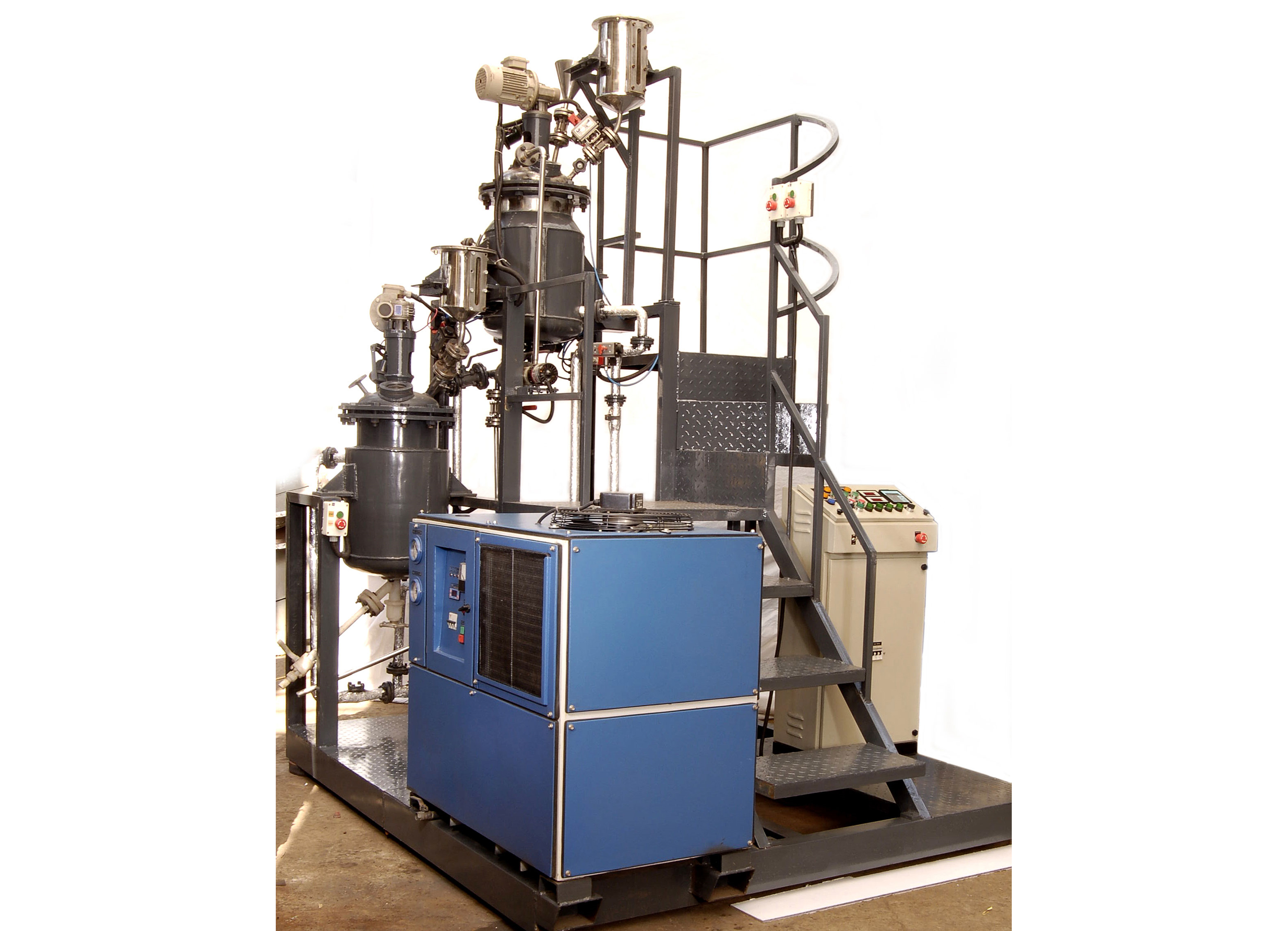

LEO-CHILL range of CV Series Chilling plants are brine based chilling plants specially designed for ToiletThese chillers are designed for 40 to 70 grams the mini series and for 70 to 100 grams the CV6 seriesOperating at a temperature of -20 to -25°C.Designed with water Cooled Condensers for larger capacity & Air Cooled Condensers for smallerWell-designed, easy to operate,In built Control Panel incorporating fuses, Switchgears, TerminalAPPLICATIONS:Soap Stamping machines and Plodders| MODEL | CV6 120-1 | CV6 160-1 | CV6 240-1 |
| Capacity | 2-TR | 3-TR | 5-TR |
| Production | 120 BARS/MINUTE | 160 BARS/MINUTE | 240 BARS/MINUTE |
| Compressor Type | Scroll | Scroll | Semi Hermetic Recip |
| Circuit | Refrigeration with | Refrigeration with | Refrigeration with |
| Design Temp. for Outlet | -20 °C | -20 °C | -20 °C |
| Condensing Temp | 55°C | 55°C | 55°C |
| Refrigerant | R-404 Water |
R-404 Water |
R-404 Water |
| Condenser | Air Cooled | Air Cooled | Air Cooled |
| CHILLER PUMP | |||
| Flow rate max. | 3000 LPH | 3000 LPH | 3000 LPH |
| Pressure Max | 2.8 Bar | 2.8 Bar | 2.8 Bar |
| Pump power | 0.75 HP | 0.75 HP | 1.0 HP |
| Make | Reputed make | Reputed make | Reputed make |
| TANK INSULATED | |||
| Capacity | 100 | 130 | 200 |
| Construction | Elastomeric Insulated | Elastomeric Insulated | Elastomeric Insulated |
| Electrical Connection | 450 VAC 50 Hz 3 Phase | 450 VAC 50 Hz 3 Phase | 450 VAC 50 Hz 3 Phase |
| CHILLER | |||
| Type | Flooded | Flooded | Flooded |
| Insulation | PUFF | PUFF | PUFF |
| Body | Powder coated | Powder coated | Powder coated |
