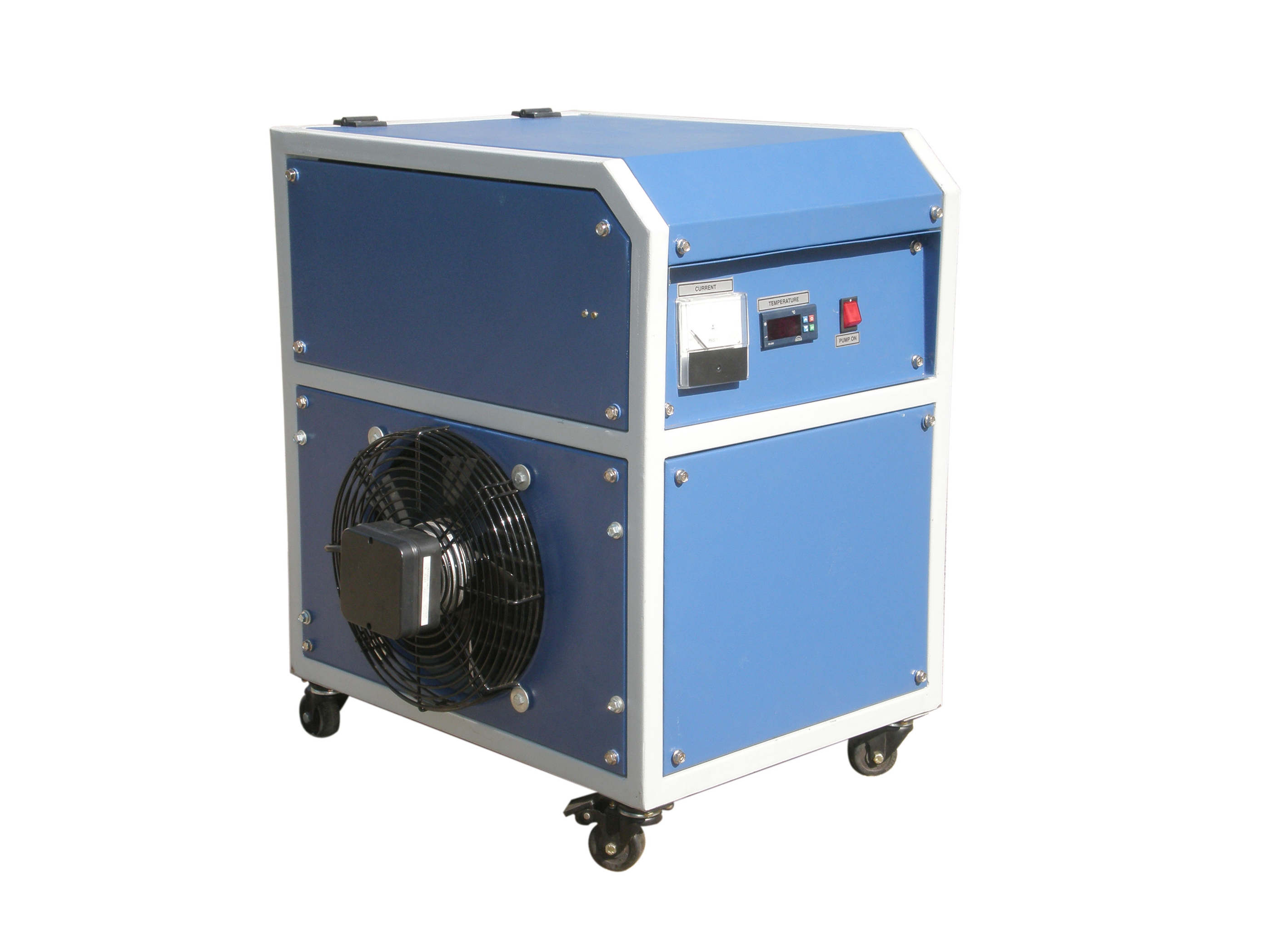

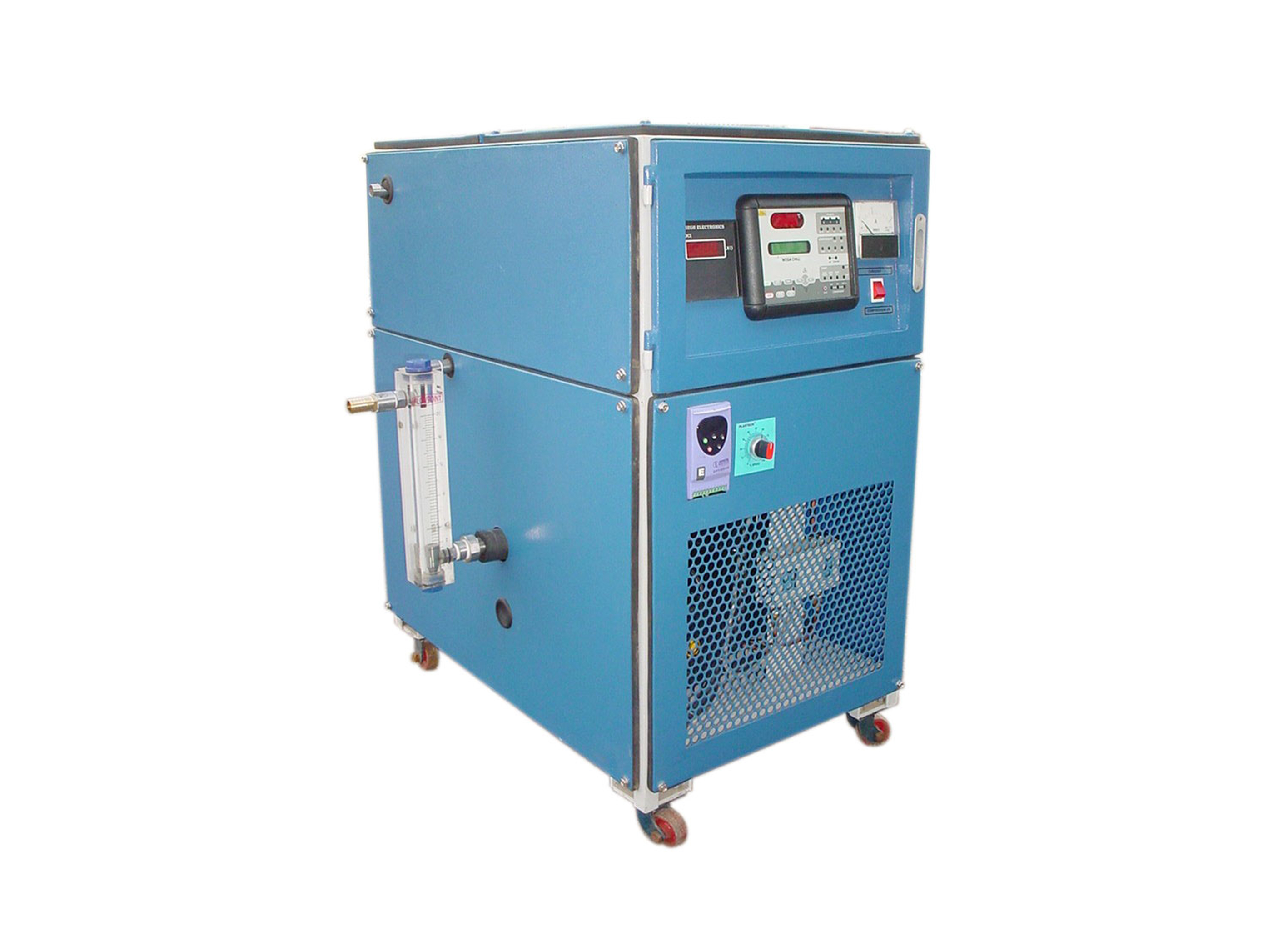

LEO-CHILL MI Series Chillers

LEO-CHILL range of MI Series Chillers is the latest version of the original circulating system. Designed to
        fit into tight spaces
, it provides accurate dependable control for your process applications and utilizes
        less floor space.


The Most important feature of this chiller is, it is without a storage tank and the media to be cooled is
        chilled Directly
due to a specially designed SS evaporator. Available in Air-Cooled and Water-Cooled

Having a temperature range from (+) 100C to (+) 200C.

MI Series range of Chillers features Non-Corrosive components in both the refrigeration and fluid
        handling circuits. Combined with a durable supply pump, and Stainless Steel Evaporator.

To ensure Precise process Fluid Temperatures a Microprocessor based Temperature Controller is
        standard on the 1 Ton to 3 Ton chillers.

Well-designed, easy to operate, in built Control Panel incorporating fuses, Switchgears, LED displays
        for Fault Detection
is a standard feature in the full range of chillers.

APPLICATIONS: Plating industry / Micro molding / Laboratory and Pharmaceutical.

Specifications for Chillers

MODEL MI 0.3T MI 0.75T MI 1T
Temperature 100C to 180C 100C to 180C 100C to 180c
Capacity in Kcal/Hr 910 Kcal/Hr 2268 Kcal/Hr 3025 Kcal/Hr
Compressor kW 0.45 1.02 1.26
Inlet/Outlet Con 3/4”BSP 1”BSP 1”BSP
Con.Load H.P 0.6 1.4 1.70
Refrigerant R-22/ R 404 R-22/ R 404 R-22/ R 404
Chiller DX SS
DX SS
DX SS
Condenser Air Cooled Air Cooled Air Cooled

NOTE: The above compressor Kw are based on evaporation temperature of 100c
